An Audio Frequency Induction Loop System (AFILS), is a listening system designed to help people with hearing impairments.
It consists of a wire loop around an area which generates an amplifying magnetic field which is picked up by suitable hearing aids fitted with a telecoil pick-up point.
Specification:
The DL50/K domestic loop amplifier kit includes everything you need to create a high quality stand-alone induction loop system for a bedroom, living room, TV lounge or study.
Carefully designed to sit discreetly alongside all types of audio/visual equipment, the amplifier features one set of phono inputs (for direct connection to television sets, etc.), two microphone inputs and an alert input (for connection to fire alarms, doorbell/door entry etc.).
Screwdriver adjustable drive, level, mix and tone controls are provided, allowing the system to be tailored to suit the exact requirements of any room, with installation further aided by the provision of a headphone socket, output current meter, input peak LED and easy-to-follow installation guide.
Kit includes:

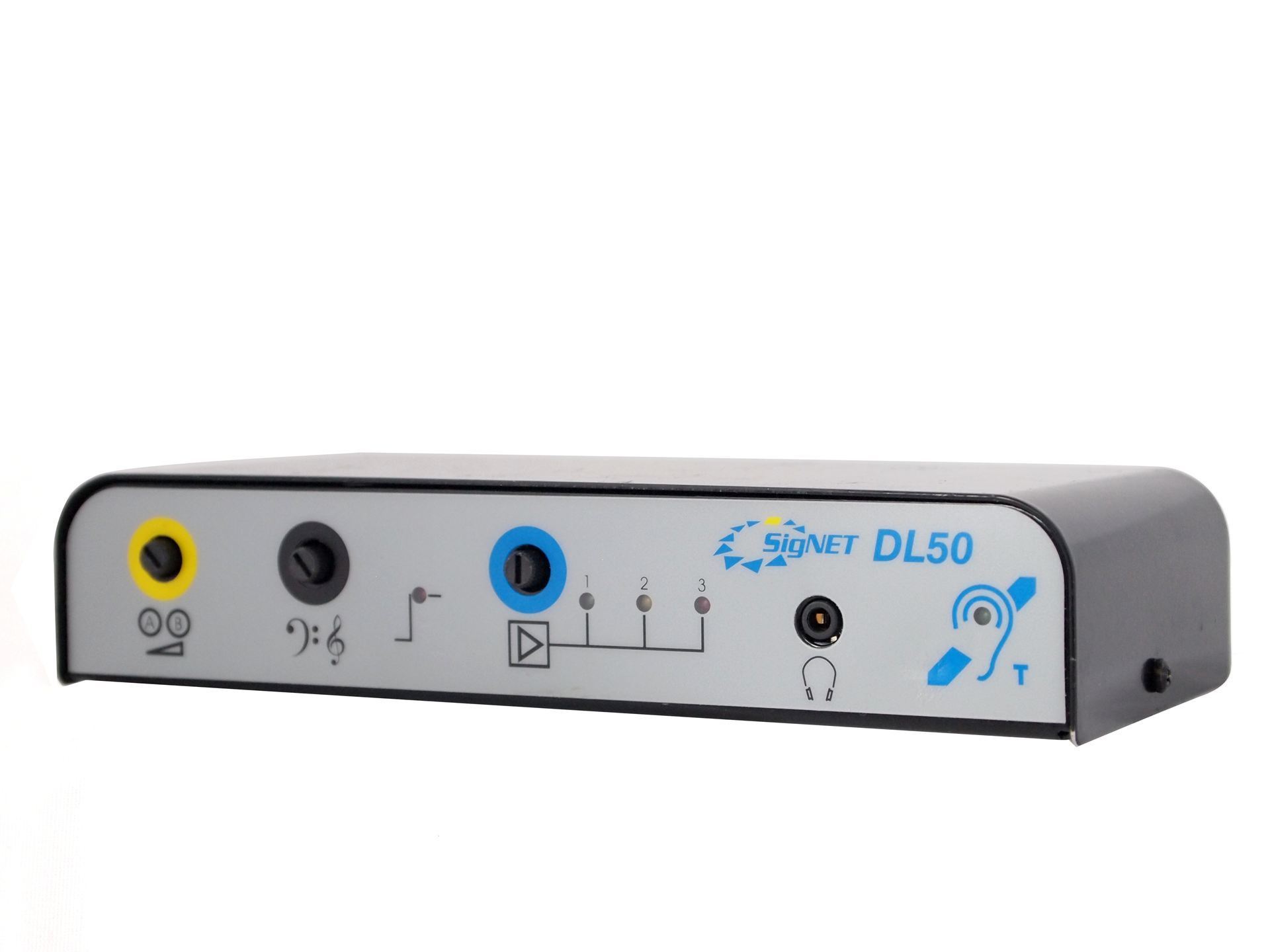

DL50 induction loop amplifier
Plug-top power supply
33m reel of induction loop cable
SCART-to-Double-Phono audio lead
Microphone c/w mounting attachments
Easy to follow installation manual
Attractively designed amplifier provides max. square room coverage of 50m squared (7m x 7m) or max. rectangular room coverage of up to 100m squared (5m x 20m)
Connections provided for two 3.5mm electret microphones (only one mic. is provided in the DL50/K kit) and one SCART-to-double-phono audio lead (other leads are available for purchase if required).
Simple to adjust, tamper resistant drive, level, tone and mic. priority controls.
Input peak, output current, signal present and power on LEDs.
Headphone socket aids system set-up.
Alert tone input doorbells, fire alarms, security systems etc.
Automatic compressor limiter.
Full 2ohm drive current capability for increased coverage at higher frequencies.
Fully compliant with EN60118-4 (formerly BS6083) and BS7594:1993.
Dimensions (WxHxD): 185 x 40 x 85 mm
Weight: 550g (amp only)
Finish: Black Satin
