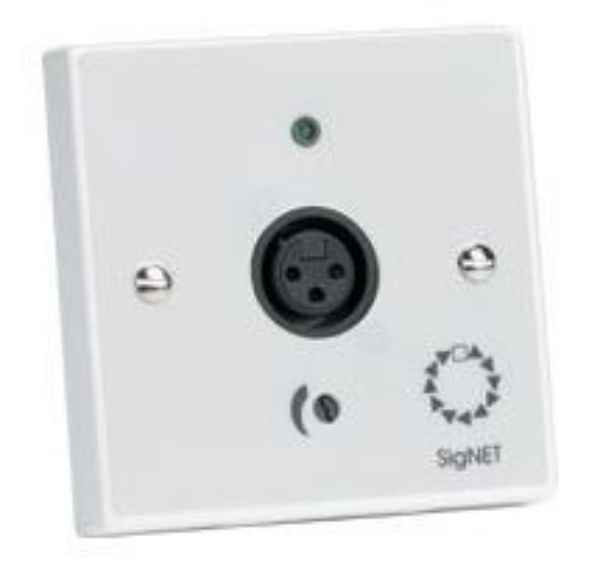

XLR Mic Level Outreach Plate

APXM Outreach plate for connection of AMP microphone.

For use with the PDA range of audio induction loop systems.

The XLR Mic Level Outreach Plate can be used to increase the number of audio inputs on an induction loop system.

Typically, up to 10 Outreach plates (any mix) can be daisy-chained to one balanced line level input with cable lengths of up to 100m easily achievable using standard two-pair audio cable with no recognisable degradation of audio signal quality.

Each outreach plate requires four wires, two balanced line (A+, A–), one ground (0V) and one power connection (12-32 V DC regulated).

To facilitate their straightforward connection, most PDA Range amplifiers are fitted with an Outreach connection socket as standard.
